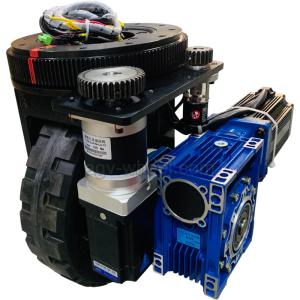

Heavy Duty 48V 2KW Horizontal Servo Motor Wheel AGV Drive Wheels

Name: Heavy Duty 48V 2KW Horizontal Servo Motor Wheel AGV Drive Wheels
Brand: ZHLUN
Price: 1 USD

Place of Origin : Guangdong, China

Brand Name : ZHLUN

Packaging Details : Packing: Wooden Box

Supply Ability : 1000 Pieces per Month

Price : Negotiable

Model Number : ZL-490

MOQ : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 25 days

Gear Reducer : Worm Gear Motor

Type : Motor Drive

Maximum Load : 2T

Wheel material : Solid rubber/Polyurethane

Motor Type : AC/BLDC/Servo

Feature : Parallel planetary transmission

Wheel Diameter : 400 mm

Wheel Width : 100 mm

Contact Now

Heavy Duty 48V 2KW AC Motor Drive Wheel Agv Horizontal Wheels

Spcification

Model	ZL-490
Gear box	Level 2 Stage gear
Speed ratio	I	7-120
Wheel diameter	mm	400
Speed	m/min	20-200
Maximun load	KG	2000
Temperature	℃	- 10 to + 55
Weight	KG	75
Traction motor	Servo / Brushless
Rate power	W	1000 - 2000
Rate voltage	V	DC24-48V / AC220 above
Rate speed	rpm	3000 ( customizable )
Rate torque	N.m	3.18 - 9.68
Steering motor	Servo / Brushless
Rate power	W	750 - 1000
Rate voltage	V	DC24-48V / AC220 above
Rate speed	rpm	3000 ( customizable )
Rate torque	N.m	2.39 - 3.18
Reducer speed ratio	I	35 - 120
Ranger	± 120°
Angle limit	NPN / PNP
Sensor	Optional

Description

Suitable for electric transportation vehicles

Optional motor type: AC/BLDC/Servo

Voltage can be customized

Optional multiple well-known sensors (absolute value, incremental, etc.)

Various installation heights (145mm-490mm), small size, large bearing capacity (100kg-10T) , and large traction (200W-3kw)

Multiple speed ratio choices (1:7-1:96)

Features

Small size: adopts integrated design, small size and light weight;

Simple operation: integrated automatic centering function;

Strong adaptability: In response to the mobile requirements of the machine, the core components are equipped with a shockproof system, which effectively prevents damage to the core components of the machine due to accidental impacts during the transportation and use of the equipment;

Various installation forms: horizontal and vertical

Multiple choices: AC or DC power supply.

Heavy Duty 48V 2KW Horizontal Servo Motor Wheel AGV Drive Wheels
